Canoe Sail 36 square feet with reef

Canoe Sail 36 sq ft (3.34 sq m)

We are happy to announce the introduction of a modest sailing canoe sail.

It is also suitable for small children’s sailing dinghies about 8ft long – see more information below.  Typically kids sailing dinghies have around 35 to 40 square feet of sail.

Inextpensive canoe sail 38 sq ft - reallysimplesails.com

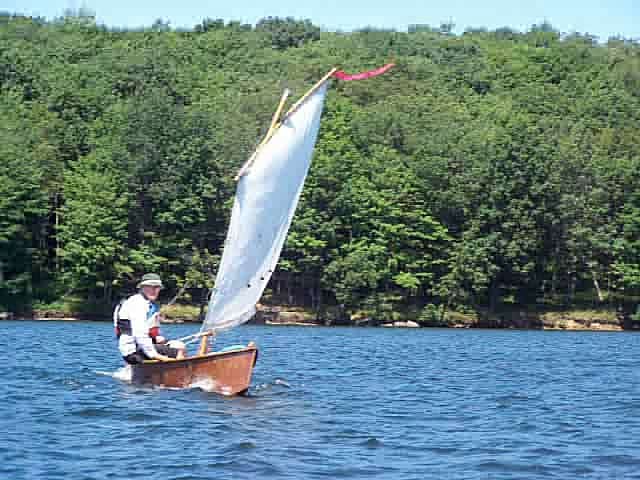

The production sail has only a single reef unlike this early trial sail from a couple of years ago.

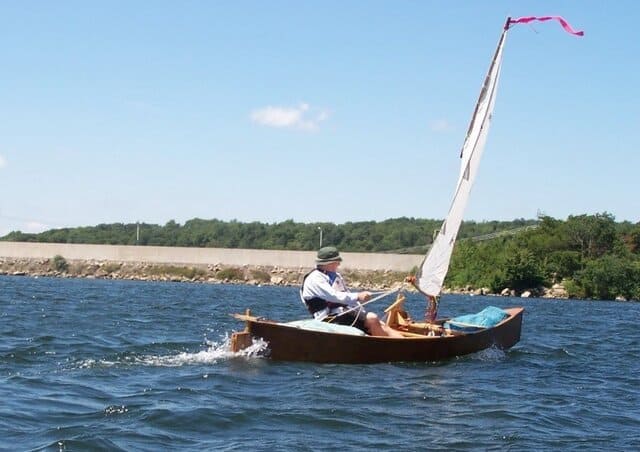

The photos are the same  sized sail made by my friend Paul Helbert on  prototype Quick Canoe being sailed by me at Mt Storm Reservoir in Virginia USA.  The new RSS made sail is quality white dacron and has one reef only, but these photos should give an estimate of the size and how it looks.

Inextpensive nice canoe sail 38 sq ft - reallysimplesails.com

It will fit many boats including the drop in sailing canoe rig from Storer boat plans.  It has a reef that will take it down to 23 sq ft which is the same size as the original smaller sail for the drop in rig.  It uses the same yard and boom length as that simple sailing rig.

Fitting the 36sq ft sail to other boats and canoes.

Mast Diameter – We recommend for canoes where the crew might sit on  the side of the boat to sail that the mast cross section be around 50mm (2″) round or 45mm (1 3/4″) square with rounded corners.  The round dimensions will work for round wooden masts, including hollow birdsmouth mast construction or for an aluminium section with about a 2mm (.08″) wall.

For a boat which will be sailed sitting inside the boat I would recommend a mast slightly smaller.  You can deduct 6mm or 1/4″ from the mast diameter.

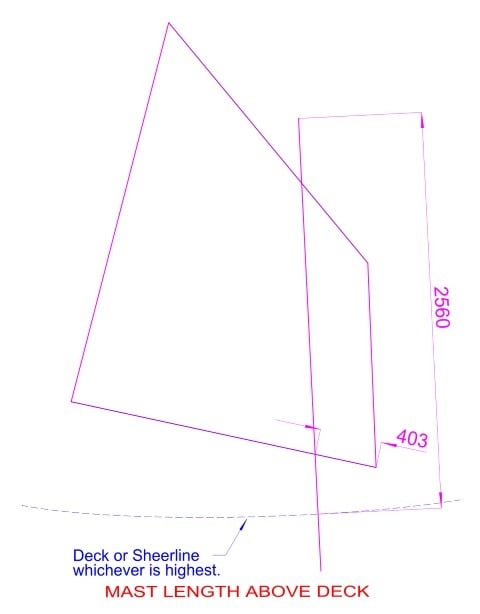

Mast Length – The mast needs to extend be about 2560 above the deck or sheerline of the boat, but will need to be longer to reach the bottom of the boat.

Inexpensive sailing canoe and dinghy sail mast length - reallysimplesails.com

Other Spars and Centre of Effort or balance of the boat

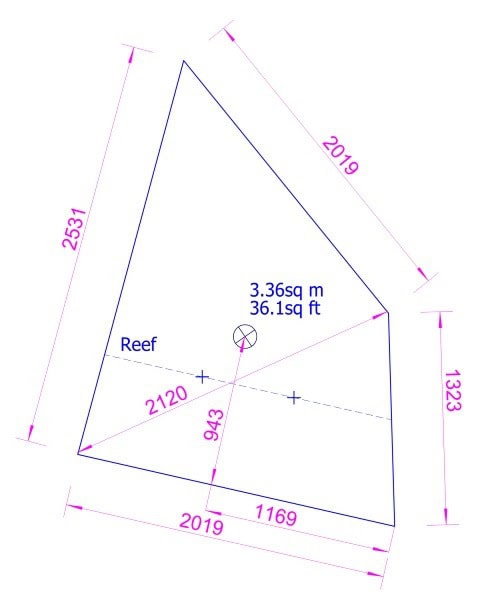

This is a sail diagram to give the measurements for the yard and boom.  It also gives enough information for people to work out if the CE (centre of effort) will be in the right place for  their centreboard or leeboard position.

Quallity cheap sail for canoes - centre of effort - reallysimplesails.com

As a balance lug – For a boat without a skeg  or keel I usually use the underwater part of the centreboard or leeboard ignoring the rest.  Then I take the middle leading (front) edge as the point I am interested in.  If that point is about 400mm (1.3ft) behind the mast or LESS then this sail should work.

As a standing lug – If it is used as a standing lug rather than a balance lug the leading edge of the board can be 700mm behind the mast.

Rigging the sail

One of the best pages for rigging lug sails is on the storerboats website, but rope sizes can be much less than shown for the larger Goat Island Skiff.

An Example of Alternative Boats

Dave Gentry, who designs very fast building skin on frame boats designed a lightweight dinghy (55lbs/25kg) around this canoe sail.  Dave has set it as a standing lug.

More on Dave’s Piankatank River Pram here

inexpensive sail for a sailing tender or dinghy - reallysimplesails.com
